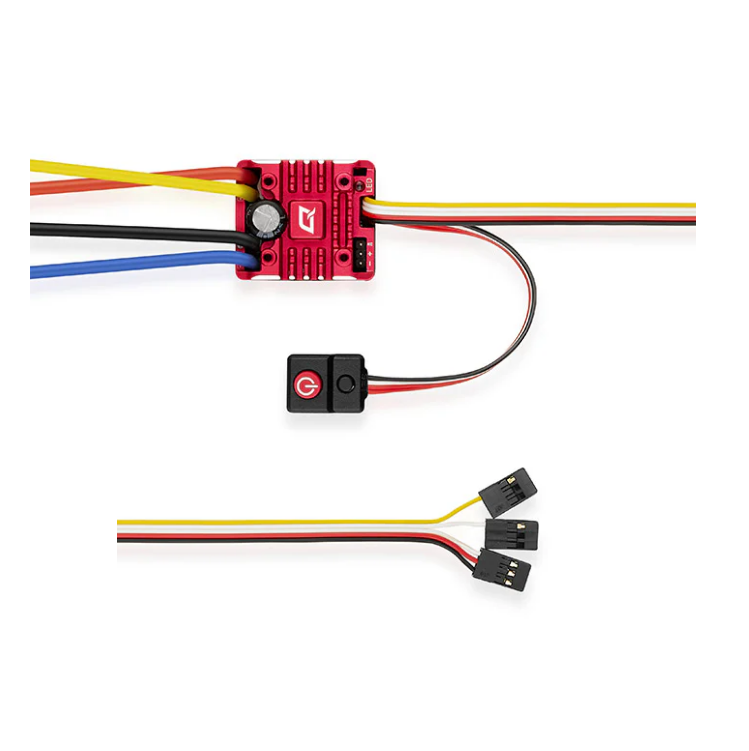

HOBBYWING Quicrun 1080 G2 80A WP Crawler Brushed ESC - HW30120202

HOBBYWING Quicrun 1080 G2 80A WP Crawler Brushed ESC - HW30120202

Hobbywings second generation brushed esc for rock crawlers comes with an improved BEC and four driving modes. The new design reduces operating temperatures by around 15°C improving reliability and loss of function through excessive temperature.

Driving Modes:

• Forward and brake
• Forward, reverse and brake
• Forward and reverse
• Real car driving mode

Real Time Drag Brake Adjustment

Adjust the drag brake in real time when you connect the correct plug to an open  channel on your receiver that can be adjusted from a 3rd channel on your transmitter.

BEC Upgrade

The new upgrade increases maximum output to 6A and provides 6V, 7.4V and 8.4V output options to support most servo brands.

Fully Programmable

Using Hobbywings (red-30501003) program card, the 1080 G2 has 15 programmable items to let you perfectly customise the ESC to your own driving style and the requirements of the vehicle. Top mounted program card port for easy access.

Features:

• Fully Water-proof IP67 standard and dust-proof, suitable for all-weather races.
• Small in size, with a built-in capacitor module.
• Four operating modes available (Real Car Operating / FWD with Brake / FWD and REV with Brake / FWD and REV)
• In the first "real car mode" The direction of the motor is switchable in real time by using the idle channel on the remote control.
• Real-Time Adjustment of Drag Braking Force.
• 15 programmable parameter items
• PWM Frequency: 1K/2K/4K/8K/16K Adjustable
• Freewheeling (DEO) capability
• Drag brake rate in 9 levels (adjustable)
• Electronic switch
• Aluminum case for heat dissipation
• Great current endurance capability.
• Built-in BEC output capacity switchable 6V/ 7.4/ 8.4V
• Automatic throttle range calibration, easy to use.

• Over Voltage Protection
• Low voltage cut-off protection for battery
• Over-heating protection
• Throttle signal loss protection, and much more

• WP-1080 G2 ESC VS WP-1080 (G1)
• BEC output can go up to 8.4V

• New Aluminium case
• Comes with XT60 plug (can be changed instore to meet requirements)

Specs:

Application - Rock Crawlers

Battery - 7.4V-11.1V Lipo or 5-9S NiMH

Forward continuous current - 80A

Motor Limit - 7.4V Lipo 10T and up, 11.1V Lipo 16T and up

Dimensions - 37.2mmL x 31.9mmW x 18.4mmH

Weight - 70.2g
