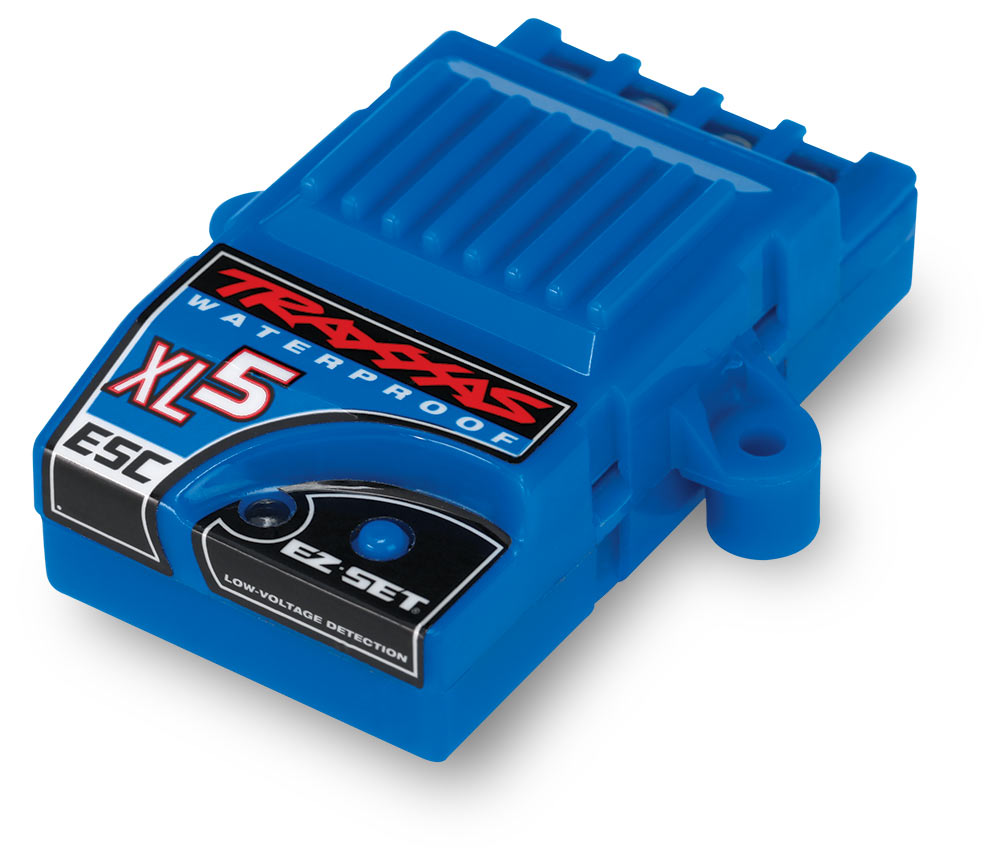

TRAXXAS XL-5 Brushed ESC - 3018R

TRAXXAS XL-5 Brushed ESC - 3018R

The waterproof XL-5 electronic speed control delivers all-weather fun while supplying power smoothly to the motor. This high-performance ESC packs impressive features normally found on more expensive high-end replacement units. The XL-5 features a completely waterproof design (NOT submersible), three throttle profiles, low voltage detection, Thermal Shutdown Protection, 4-7 cell NiMH and 2-cell LiPo compatibility, and built-in BEC. Exclusive Training Mode reduces the overall power output by 50%, making it easier for young or new drivers to develop their control skills before unleashing full-power.

MAXIMUM 8.4V

Traxxas High-Current Connector
The XL-5 ESC is equipped with the patented Traxxas high-current connectors for restriction-free current flow.

Training Mode
An exclusive feature that places the XL-5 ahead of the pack is the patented Training Mode. This feature reduces the overall power output of the XL-5 by 50% making it easier for new drivers to control their model.  When they're ready, simply change profiles to unleash full-throttle action.  Only Traxxas has it!

Features:

• Built-in two-stage low voltage detection (LVD)
  for Lithium Polymer (LiPo) battery use
• Innovative watersealed design
• 15-turn motor limit for 540 size motors
• 12-turn motor limit for 550 size motors
• Fully-proportional forward, reverse, and braking control
• Programmable with three drive profiles:
  • Sport Mode – Fwd / Brake / Rev
  • Race Mode – Fwd / Brake
  • Training Mode* – 50% Fwd / Brake / 50% Rev
• EZ-Set push-button setup
• Multi-color LED
• Thermal shutdown protection
• Efficient, low-loss MOSFET design
• Smooth, high-frequency operation
• Easy installation in Traxxas models


Specs:

• Input Voltage - 4.8 to 8.4V
• Case size - 31.2mmW x 55.4mmD x 15.5mmH
• Weight - 69g
• Motor Limit - 15T 540size, 12T 550size
• BEC Voltage - 6V DC
• BEC Current - 1A
• Power Wire - 14 guage
• Input Wire - 26 guage
• PWM Frequency - 1600Hz
• Low Voltage Detection - Lipo (on)/ Nimh (off)
• Thermal Protection - Yes
• Driving Modes -
  • -Sport Mode:
        100% FWD, 100% brakes, 100% REV
  • -Race Mode:
        100% FWD, 100% brakes, no REV
  • -Training Mode:*
        50% FWD, 100% brakes, 50% REV
• Single Button Set-up - Yes
