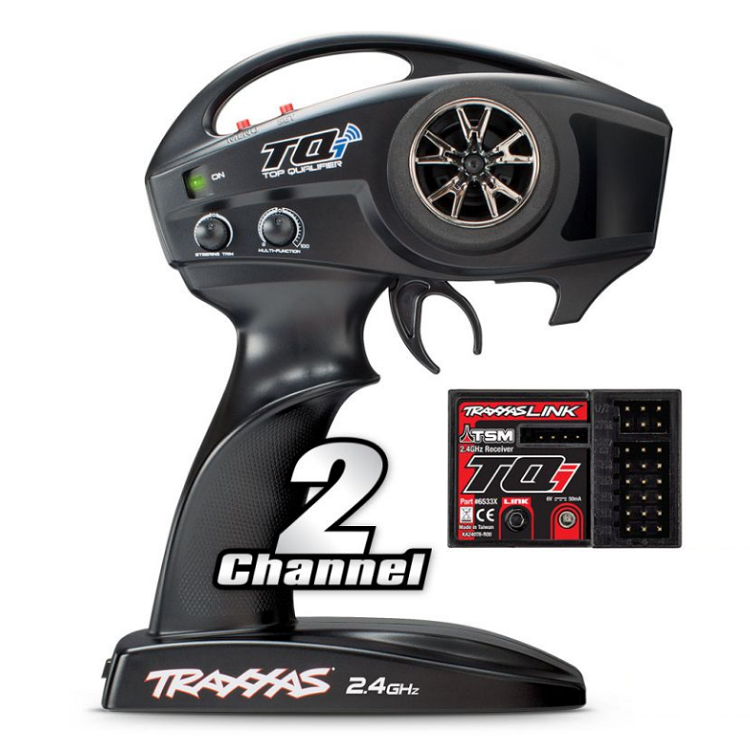

TRAXXAS TQi 2Ch Transmitter & 6533X Receiver w/ Bluetooth & TSM - 6509A

TRAXXAS TQi 2Ch Transmitter & 6533X Receiver w/ Bluetooth & TSM  - 6509A

This is the stock transmitter and receiver for all Traxxas VXL trucks (VXL-3S, VXL-4S, VXL-6S and VXL-8S)

The world's fastest Ready-To-Race vehicles deserve the most advanced radio system. It must be precise, comfortable, powerful, and reliable. The Traxxas TQi 2-channel radio system includes a full complement of tuning features; long range, high-output 2.4 GHz signal, and proven Traxxas reliability for rock-solid performance. Automatic model recognition instantly recalls your settings for up to 30 Traxxas Link-enabled models. The TQi's ergonomic design provides all-day driving comfort, with an internal antenna that is impervious to damage.

The included 6533X micro receiver uses an integrated LINK button for fast and easy binding. A two-color LED indicates power-on and bind status for fool-proof control and convenience. In the event of signal loss, the receiver's fail-safe programming will automatically return the throttle to neutral and hold the last commanded steering position.

The 6533X receiver features built-in Traxxas Stability Management (TSM) programming. TSM makes it easier to control your vehicle on slippery surfaces. Punch it off the line and TSM senses the vehicle’s direction and makes steering corrections to provide straight-ahead full throttle acceleration without loss of control. When cornering, TSM makes intuitive corrections to maintain the vehicle’s line for faster exit speeds. TSM also improves braking performance by keeping the front wheels arrow straight until they come to a complete stop.

Transmitter Features:

• High Output signal for maximum range
• Integrated internal antenna
• Simple 2-button interface
• Steering trim and Multi-Function knobs
• Adjustable steering and throttle percentage (dual rates)
• Adjustable steering and throttle sensitivity (exponential)
• Adjustable steering and throttle end points
• Automatically stores and loads settings for up to 30 Traxxas vehicles
• High 13 ms frame rate and near-zero latency for responsive control
• Comfortable ergonomic design
• Operates on 4 AA batteries

Receiver Features:

• Telemetry enabled 5-channel micro receiver with dual channel-1 inputs
• Built-in fail-safe programming
• Automatically returns the throttle to neutral
• Holds the last steering position
• Traxxas Stability Management (TSM)
• Makes vehicles easier to drive, particularly on loose surfaces
• Allows the driver to accelerate harder and drive faster with much greater control
• Dramatically improves braking performance, preventing the vehicle from spinning out
• Allows faster cornering speeds
• Never reduces throttle or dulls throttle response
• TSM assistance is fully adjustable from 0-100%

suits:

All Traxxas trucks using:

VXL-3S, VXL-4S, VXL-6S, VXL-8S ESC

DCB M41

Nitro Rustler

Nitro Slash

Slayer Pro

Spartan SR

 INSTRUCTION MANUAL NO 70/30 SWITCH

 INSTRUCTION MANUAL WITH 70/30 SWITCH
