TRAXXAS Mini XRT Red VXL-3S w/ 2.4Ghz Radio, Lipo Battery & Charger - 108076-1RED

TRAXXAS Mini XRT Red VXL-3S w/ 2.4Ghz Radio, Lipo Battery & Charger - 108076-1RED

Extreme 3S Performance. Compact Size.

Mini XRT is a true rocket with full 1/10 scale Velineon 3S capable brushless power in a compact, take-anywhere size. Mini XRT lives up to its name with unprecedented 90+ km/h speed (on 3S Lipo) and ferocious acceleration, backed by race-inspired engineering and unrivaled toughness. Mini XRT shatters all expectations with big-scale performance and toughness that fits in a backpack.

Bred For Performance

Like its massive X-series counterpart, Mini XRT was engineered with maximum focus on speed, handling, and performance. A low, ultra-wide stance delivers supreme confidence and control as Mini XRT muscles its way to 90+km/h (on 3S Lipo) and beyond. It’s a whole new way to experience big-scale fun and toughness in a backpack-friendly size.

1/10 Scale VXL-3s Brushless Power

The Velineon 3500kv VXL-3s brushless power system is the heart of Traxxas’ fastest and most powerful 1/10 scale vehicles. For the first time ever, this extreme 11.1-volt powerplant now comes installed in a compact platform. The result is astonishing acceleration, 90+km/h speed, and wheel-standing power at any rpm.

1/10 Scale 4X4 Driveline

Adding 3S Velineon power to a compact platform requires bold engineering. Mini XRT comes outfitted with the proven driveline components of Traxxas’ toughest 1/10 scale 4X4 trucks. Front, center, and rear steel-gear differentials, along with 32-pitch gearing and HD driveshafts, far exceed requirements for strength and long life.

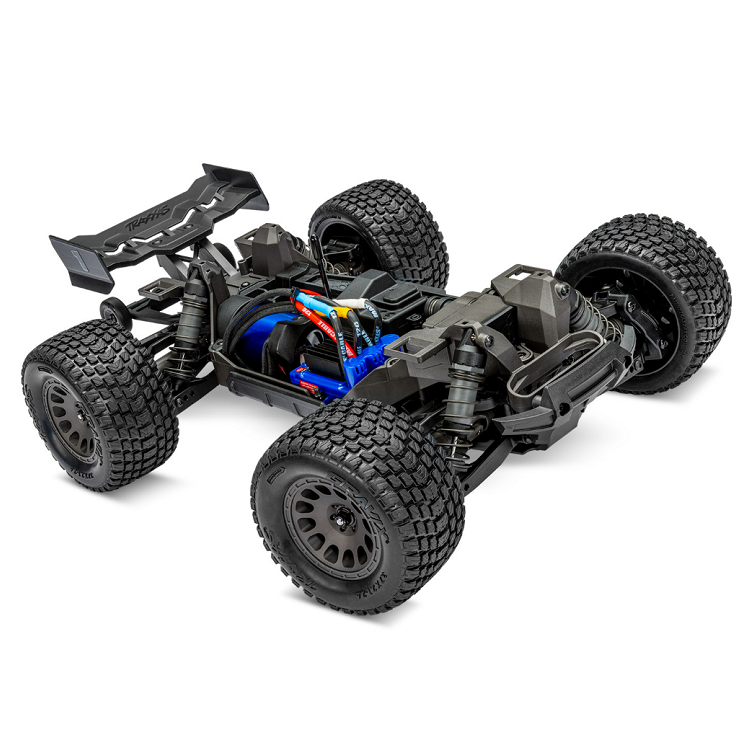

Maxx Chassis Technology

Mini XRT is the newest truck to use the revolutionary chassis design pioneered in Mini Maxx. Perfectly sized to fit into a backpack, Mini XRT transforms full-scale performance and durability into a supremely compact chassis. Just one look at the rigid, unified structure and you know it’s built Maxx tough.

2S Lipo Battery & Charger Included

Mini XRT includes a Traxxas 3500mah 7.4V 2S Lipo battery for maximum punch, long run times and 65+km/h speed. The included 2A USB-C lipo balance charger provides quick, reliable charging with Traxxas ID safety and simplicity. Step up to the optional 3S Lipo battery to unleash 90+km/h speed with no gearing changes required.

Clipless Body

Mini XRT’s innovative clipless body is rock solid and easy to use. Just drop the body onto the chassis and snap it into place for a secure hold. When it’s time to change the battery, depress the tabs under the wheel wells and lift to access the chassis. Nothing else is faster or latches more securely.

WideMaxx Suspension

Mini XRT relies on proven WideMaxx suspension design to deliver sure-footed grip and laser-focused handling. Mini XRT sits low and wide for hard cornering and maximum stability at speed. The long-travel suspension delivers refined damping control to maintain composure over the roughest terrain.

Other Features:

Modular design - Designed exactly the same as the full scale XRT, the Mini XRT comes apart in three chunks with the removal of just a few screws. Traxxas made it that way for easy maintenance and repair.

1:10 Scale 4WD Driveline - Driveshafts and diffs were all originally designed for Traxxas toughest 1:10 scale trucks, with meaty plastic parts and metal gears in front, rear and center diff, Traxxas scaled them down to fit in Mini XRT.

1:10 Scale Steering Servo - Traxxas wanted Mini XRT to steer with command so they added 2075X, a 9kg metal gear waterproof steering servo for rapid respinse times and lots of torque.

3.7in Gravix Tyres - This mini version of the Gravix tyres put allllll the power to the ground for instant accelleration and razor sharp reflexes on any terrain. Their directional tread pattern runs quieter than typical off road tyres and they have a thicker built in center carcass to limit ballooning at high speed. Gravix tyres come mounted on 2.6in dual-profile graphite wheels.

1:10 Scale Ultra-Shocks - The same as the ones used on Slash and Stampede. Used on a truck this size they become super efficient and can be customised with alternate pistons and different viscosity shock oils.

Fixed Gear Mesh System - Takes out the guesswork, use the motor mount hole that matches the number of teeth on your pinion gear, perfect gear mesh, every time.

TQi 2.4Gh Radio System - Traxxas famous TQi radio system delivers superior range, 30 model memory and a fast frame rate for excellent range and responsiveness out in the field.

Traxxas Stability Management - Even the best drivers sometimes need help. TSM helps you out when Mini XRT goes sideways and you can dial up or down the amount of assistance TSM offers with the multifunction knob.

Optional LED Light Kit - Jazz it up for night-time driving with the optional LED light kit (10785). The kit includes new bumpers and a roof skid plate with built in light bars, white in the front and red at the back. LED light kit includes 3V Power Supply.

High Downforce Rear Wing - Just like the big XRT, but small. Helps keep Mini XRT on the ground.

Wheelie Bar - Included because Mini XRT has trouble keeping all 4 wheels on the ground. The wheelie bar will also help stop backflipping.

Rubber Sealed Bearings - No oilite bushes here, Mini XRT comes equipped with a complete set of rubber sealed bearings throughout for the least amount of friction possible.

Waterproof - As always, Traxxas makes Mini XRT as waterproof as it is possible to make electrical equipment waterproof but Mini XRT is NOT submersible.

Specs:

Length: 376mm
Front Track: 279mm
Rear Track: 279mm
Ground Clearance: 27mm
Weight: 1.81kg
Height: 127mm
Wheelbase: 220mm
Shock Length: 88mm
Tire Diameter: 94mm
Wheel Diameter: 2.1″ (53mm) outer, 2.6″ (66mm) inner
Speed Control: VXL-3s brushless ESC (11.1V Lipo MAX)
Motor (electric): Velineon 3500Kv sensorless brushless
Transmission: Direct-drive with center differential
Overall Drive Ratio: 7.36:1
Differential Type: Planetary, steel gear
Gear Pitch: 32P
Chassis Structure/Material: Composite modular tub
Brake Type: Electronic
Drive System: Shaft-driven 4WD
Steering: Double-shear bellcrank
Wheels & Tires: Black dual-profile XRT wheels with pre-glued 4″ Gravix tires
Radio System: TQi 2.4 GHz high output 2-ch w/ TSM
Servo: 2075X 9kg Metal gear Waterproof
Top Speed: 90+km/h (on optional 3S Lipo)
Skill Level: 1 (NOT on 3S Lipo)

Whats In The Box:

• Mini XRT Ready-To-Race monster truck in the colour of your choice

• 3500mAh 2-cell LiPo battery with Traxxas ID plug
• 2A USB-C charger
• Exploded diagrams and parts list
• Quick Start Guide
• TQi 2.4 GHz radio system
• Tools

What You Need:

4x AA alkaline batteries for the transmitter, and a loooong piece of road!
