TRAXXAS Mini Slash Yellow BL-2S w/ 2.4Ghz Radio, Lipo Battery & Charger - 108164-1YLW

TRAXXAS Mini Slash Yellow BL-2S w/ 2.4Ghz Radio, Lipo Battery & Charger - 108164-1YLW

Mini Slash 4X4 takes all the intense fender-to-fender racing fun of a 1/10 scale short course truck and infuses it with unrivaled power and extreme durability in the perfect size. Mini Slash 4X4's overbuilt driveline puts BL-2s Brushless power to the ground off-road in the dirt or flat out at 30+ mph on concrete and asphalt. Mini Slash 4X4 is a take-anywhere powerhouse that slips easily into a backpack and delivers all-day speed and fun in just about any environment.

Maxx Slash Performance in a Compact New Size

Mini Slash 4X4 combines the best Slash qualities: strength, speed, and durability to create a unique short course truck experience. The result is a compact powerhouse with 30+ mph, track-focused handling, and zero compromises. Experience short course performance in a whole new way with Mini Slash 4X4.

1/10 Scale Power System

The BL-2s Brushless Power System is already proven to deliver extreme power and wheel-standing torque in Traxxas 1/10 scale vehicles. Installed in Mini Slash 4X4, BL-2s power delivers lightning-quick acceleration and 30+mph (48km/h) speed.

1/10 Scale 4X4 Driveline

Mini Slash 4X4 is engineered to a higher standard with 1/10 scale 4WD driveline components. Large steel- gear differentials, beefy 32-pitch gears, and heavy-duty U-joint driveshafts far exceed requirements for strength and long life.

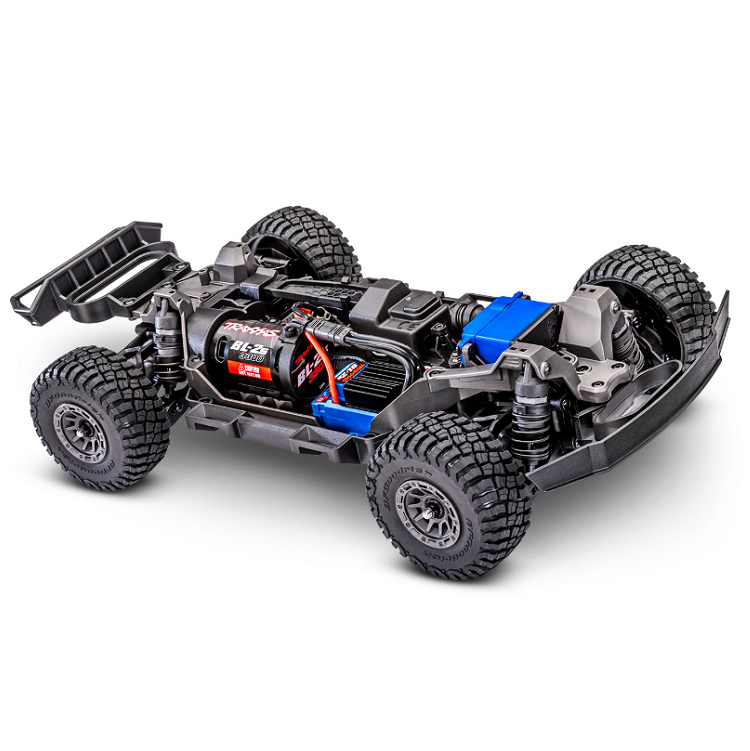

New Extended Mini Chassis

Mini Slash 4X4 builds upon the radical strength of Mini Maxx’s ultra-rigid, unified chassis and extends the wheelbase to 235 mm. The added 15 mm of chassis length provides a longer, more stable footprint, better high-speed stability, and a true-to-scale driving experience.

Clipless Body

Mini Slash 4X4's clipless short course body is rock solid and easy to use. Just drop the body onto the chassis and snap it into place for a secure hold. When it’s time to change the battery, depress the tabs under the nerf bars and lift to access the chassis in just seconds. Nothing else is faster or more secure.

Officially Licensed BFGoodrich Tyres

Mini Slash 4X4 wears all-new replica BFGoodrich Mud-Terrain TA KM3 tyres for exceptional multi-terrain traction. Internal reinforcing ribs replace conventional tyre foams for more consistent and longer lasting tread support. A new tyre compound perfectly balances grip with wear resistance for optimal traction on most surfaces.

Realistic Moulded Interior

Mini Slash 4x4 features a full interior with driver figure and replica netting for authentic scale looks. The moulded interior incorporates special channels to direct cooling air-flow from the cabin over the motor and ESC to keep the temperature down in your electrics.

Includes Lipo Battery and Charger

Traxxas have included a 3500mah 7.4V Lipo battery with the truck for best possible performance and a 2A USB-C balance charger to complete the ready-to-run pack.

Modular Design

Traxxas have perfected the art of modular, easy to dis-assemble design. Remove a few screws and Mini Slash comes apart in 3 chunks for easy cleaning, maintenance and repair.

Standard 2056 Steering Servo

Traxxas' long time, all purpose #2056 servo comes into use again in Mini Slash. With 5.76kg of torque and full waterproof sealing #2056 provides a crisp and reliable steering response.

Traxxas TQ Radio System

Traxxas TQ radio system has been around for a long time. It provides long range and short reaction time between radio and receiver, for a large range of Traxxas trucks. Comfortable hand-feel, glitch free performance and fast frame rate, who could ask for a better radio.

Waterproof Electrics

Traxxas make their cars as waterproof as possible, with full waterproof sealing on their ESCs, servos and receiver boxes. Waterproof means rain, snow and puddles are no obstacle to RC bashing fun. (Traxxas cars are NOT submersible)

Need Lights?

Install Traxxas optional Mini Slash Light Kit (#10886). The Light Kit includes a forward facing white LED light bar and red LED lights in the rear. A regulated 3V power supply provides consistent, flicker free performance from beginning to end.

Other Features

• Licensed BFGoodrich Tyres are moulded in a new rubber compound that balances grip with wear resistance. Internal reinforcing ribs eliminate convertional tyre foams that can absorb water and upset tyre balance.
• Chassis Nerf Bars cradle the lower edges of the body shell and are designed to protect the edge of the chassis and the lower edge of the bodyshell.
• Moulded Bodyshell Reinforcements are neatly integrated into the body shell for a smooth and seamless look whilst protecting the bodyshell from impact damage.
• Rugged Bumpers, extra meaty to help protect the chassis and diffs from crash damage in the front and rear.
• Ultra Shocks have been on some of Traxxas premium 1:10 scale trucks and have been around a long time. Tried and true performance hydraulic dampening.
• Fixed Gear Mesh System takes the fiddly guesswork out of correctly meshing your spur and motor pinion gears. Motor plates have multiple preset gearing positions making changing gearing extra easy.
• Deep Wall Battery Compartment with a hinged, double sided, latchable battery strap protect your Lipo batteries even in the worst crashes.
• 3-Channel Receiver with Fail Safe Security built in, will stop Mini Slash from driving away at top speed in the event of battery failure in the radio. The receiver returns the throttle to neutral and holds the last steering position.
• Dual Steering Bellcrank Assembly with Servo saver provides zero bump steer geometry, smooth turning action and equal delivery of steering power to both front wheels whilst a heavy duty, cam style servo saver guarantees protection for the servo from impact damage.

• Interlocking Skid Plates protect the underchassis on Mini Slash from environmental hazards  and create a smooth, snag free undertray.
• Heavy Duty Suspension Components are engineered for strength and durability, minimising wear and tear damage from dramatic driving and terrain hazards.
• Rubber Sealed Bearings throughout; diffs, bellcrank and hubs, for minimal loss of power through friction.
• 32 Pitch Gearing for extra toughness in the driveline. 32P is much less likely to strip in a crash and provides a solid gear mesh.
• Metal Differentials, extra tough to handle all that power without stripping. Crown gear, pinion, spider and sun gears, all steel.

Vehicle Specs:

• Top Speed: 48km/h
• Skill Level: 1
• Scale: Mini
• Length: 408mm
• Width: 215mm
• Height: 143mm
• Weight: 1.64kg
• Track: 185mm
• Wheelbase: 235mm
• Ground Clearance: 27mm
• Driveline: Shaft-driven 4WD
• Transmission: Direct drive
• Differential Type: Planetary, steel gear
• Chassis Structure/Material: Composite modular tub
• Brake Type: Electronic
• Drive System: Shaft-driven 4WD
• Steering: Double-shear bellcrank with cam style servo saver
• Wheels & Tyres: Dual-profile wheels with pre-glued BFGoodrich tyres
• Gear Pitch: 32p
• Steering Servo: 2056 waterproof high torque
• Radio System: TQ 2.4 GHz 2-channel
• Battery Compartment Specs: 113mm L x 4mm W x 22mm H

Motor Specs:

• Name: BL-2s 3300Kv
• Motor Type: Sensorless brushless
• Weight: 213g
• Length: 80mm
• Diameter: 36mm
• Shaft Size: 3mm
• Connector Type: Traxxas Quick Connect Motor Plug

ESC Specs:

• Name: BL-2s Electronic Speed Control
• ESC Type: Brushless (2S Lipo Max)
• Case Size: 39mm x 59mm x 31mm
• Weight: 87g
• BEC Voltage: 6V
• Thermal Protection: Two-stage thermal shutdown
• Ports: Auxiliary fan
• Battery Connector: Traxxas High-Current Connector

Whats In The Box:

• Traxxas Mini Slash truck in Green, Yellow, Orange or Pink
• Traxxas TQ 2.4Ghz radio system
• 3500kv 7.4V Lipo Battery
• 2A USB-C Charger
• Traxxas glossy brochure
• Booklet with spare parts listing and exploded diagrams
• Allan key and wheel nut spanner set

Needed To Complete:

4x AA alkaline batteries for the transmitter
