TAMIYA BMW 318i STW TT-01E 1:10 Kit - 58516

TAMIYA BMW 318i STW TT-01E 1:10 Kit - 58516

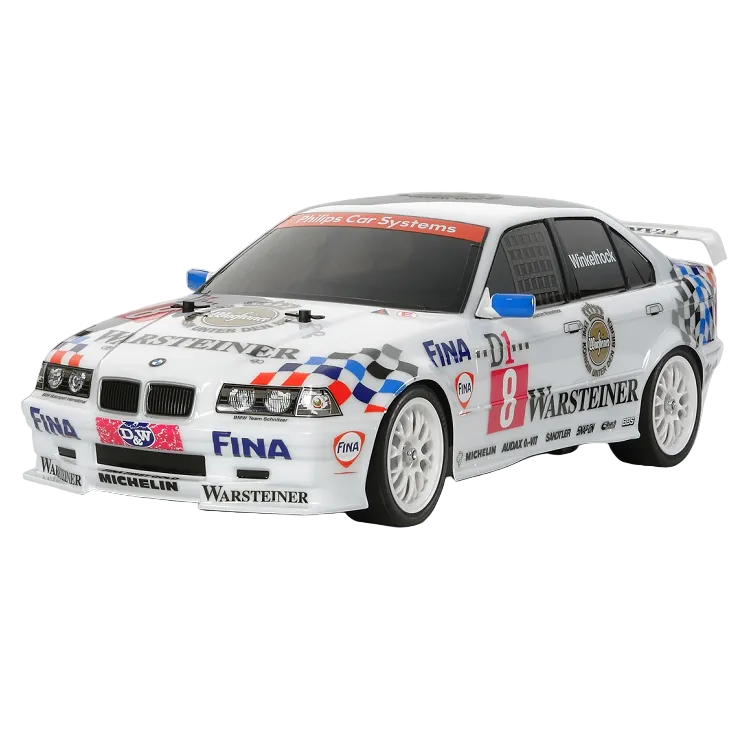

This R/C assembly kit depicts the BMW 318iSTW as it raced in the Super Touring Car Cup series in the mid-1990’s. The race car was built on the legendary E36-generation of BMW’s iconic 3-series sedan platform. The kit is a limited production rerelease that is paired with the fun and easy to build TT-01 Type E chassis. For this edition, the kit has updated markings, and window masking tape for the body painting process.
Evolved Chassis

The bathtub frame of the evolved shaft-driven 4WD TT-01 Type-E has its motor and battery close to the ground for lower center of gravity and best balance. Mounted on the bathtub frame is a fiberglass reinforced nylon upper deck and gear covers improving rigidity, as well as a 3-piece tie rod providing smooth steering action. The low center of gravity, highly balanced design, 4-wheel double wishbone suspension system, and front and rear differential gears all come together to produce an excellent 4WD on road running. A host of Hop-Up Option parts are available to further enhance the performance of this easy to build chassis.

Features:

• 1/10 scale R/C model assembly kit
• Length: 445mm, width: 310mm, height: 238mm
• Wheelbase: 257mm (standard)
• 1mm thick polycarbonate body with white ABS parts to depict rear wing and side mirrors
• The bathtub frame of the evolved shaft-driven 4WD TT-01 Type-E has its motor and battery close to the ground for lower center of gravity and best balance
• White mesh type wheels are paired with racing slick tyres
• Includes 25T 540-Type Torque Tuned motor
• Includes Hobbywing ESC

Specs:

Adjustable Gear Ratio - Yes
Bearings - Plastic bushing
Body Material - Clear Polycarbonate
Body Stickers - Included
Chassis Material - ABS Plastic
Chassis Type - TT-01E
Construction Type - Assembly Kit
Differential Type - Gear
Drive Type - 4WD
Electronic Speed Control (esc) - HobbyWing THW 1060 Brushed Motor ESC (2-3S)
Led Light Buckets - no
Motor - 25T 540-brushed type Torque-Tuned
Scale - 1/10
Shock Damper - Friction damper
Internal gear ratio - 8.35 with included 19T pinion
Suspension - Fully independent double wishbone
Terrain Use - On-Road

Needed to Complete:

• Steering servo
• Min. 2 channel transmitter and receiver
• Nimh battery ( or 2S lipo)
• Suitable charger
• Tamiya PS paints for the body shell
• AA alkaline batteries for the transmitter (if required)

OR we have the MyStyle Ready-To-Run Pack for a budget option.
