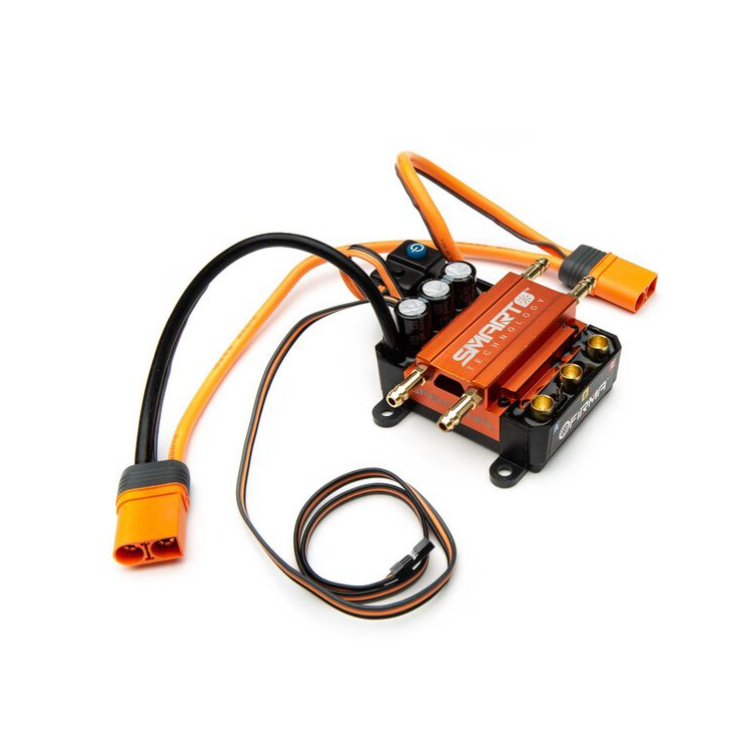

SPEKTRUM Firma 160A 3-8S Smart Brushless Boat ESC w/ Water Jacket - SPMXSE1160M

SPEKTRUM Firma 160A 3-8S Smart Brushless Boat ESC w/ Water Jacket - SPMXSE1160M

Like every component in the Spektrum Smart ecosystem, Firma Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics — together, creating the best-performing RC system for your vehicle imaginable.

Firma Smart ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Firma Smart ESCs give you an extra layer of confidence that your electronics are all operating at their best.

With Firma Smart ESCs, you'll be better connected to your vehicle than ever before — without installing extra components that all work independently of each other. You won't need extra wires, modules, or links. A Firma electronic speed control provides a one-wire solution for obtaining telemetry data such as RPM, temperature, battery voltage and capacity.

Firma ESCs not only gather the data but also send it to your transmitter in real time, instead of only storing it for after-run study. You're able to adjust settings as needed to boost performance on the go. The Firma Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC.

Compatible Motor - SPMXMM1000 1350kv 4685 boat motor.

Best used in boats under 48in long.

Features:

• Smart all-in-one telemetry
• Fast, powerful 32-bit ARM M4 processor
• 160A Continuous current, perfect for demanding high voltage setups
• Up to 8S (29.6V) input voltage
• Built in Series Connection with high heat resistant IC5 Connectors
• No compromise waterproof design
• Multiple water cooling jackets provide ample heat disbursement
• Multiple options for easy programming:
  • Button programming
  • Smart ESC Programming Box
  • SmartLink USB Updating and Programmer application
• Multi-point protection:
  • Over-current protection
  • Automatic LiPo low-voltage cutoff
  • Thermal protection
  • Failsafe protection
• Compact for easy installation in most applications
• Ready to install — no soldering required
• Rugged plastic case with mounting tabs
• Aluminum heat sink for high efficiency
• Multiple water cooling inlets/outlets
• High current 6V BEC
• Firmware updatable through the Smart ESC Programming Box
• High heat-resistant IC connectors, backwards compatible with EC connectors
• Developed and designed by Spektrum engineers, in partnership with the industry's leading ESC manufacturer

Specs:

Amperage - 120A
Application - Boat
Auto Cutoff - Yes
BEC Continous Current - 6V
BEC Type - Switch Mode
Brakes - No
Connector Type - IC5 series harness
ESC Type - Brushless
Input Voltage - 11.1 - 29.6V (3S -8S LiPo)
Max Input Voltage - 29.6V
Motor Output Lead - 6.5mm bullet
Overload Protection - Yes
Product Application - Boat
Product Height - 35.5mm
Product Length - 95.7mm
Product Weight - 280g
Product Width - 90.4mm
Programmable - Yes
Programming Options - Button, Programming Box, Smartlink App, On Screen Text Gen
Reverse - Yes
Technology - Spektrum Smart
