KYOSHO 1970 Chevy Chevelle Dark Blue Supercharged 1:10 Fazer 4wd Mk2 w/ Syncro 2.4Ghz Radio & 4000kv Brushless Motor FZ02 - KYO-34494T1

KYOSHO 1970 Chevy Chevelle Dark Blue Supercharged 1:10 Fazer 4wd Mk2 w/ Syncro 2.4Ghz Radio & 4000kv Brushless Motor FZ02 - KYO-34494T1

Designed and built for the pure enjoyment of R/C car driving, the FAZER Mk.2 welcomes this brushless motor addition to the series. Powering up from the conventional G14L brushed motor to the TORX 10E brushless motor, the 1.6x speed boost delivers 65km/h (up from about 40km/h) backed up by the newly incorporated BRAINZ 10 V2 speed controller, sintered pinion gear and aluminum HD center shaft (previously an optional upgrade) to support the extra power and higher RPMs.

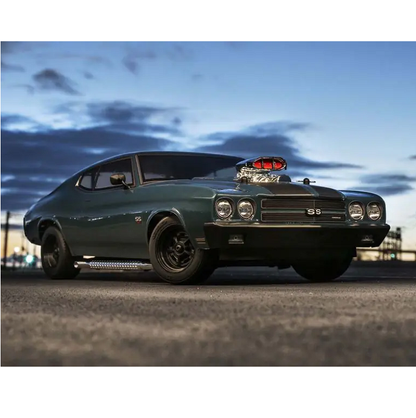

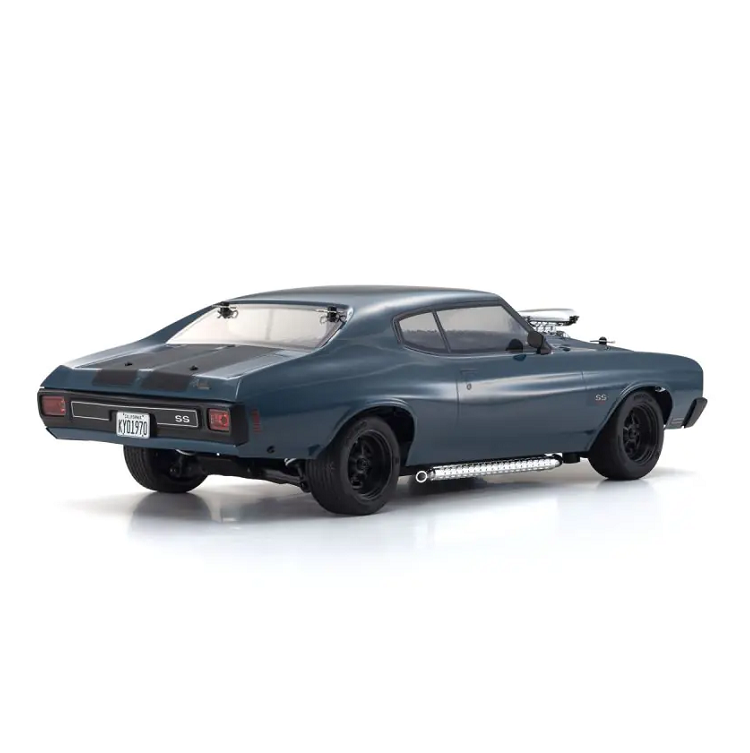

This fully upgraded version of the VE specifications boasts an ultra-scale 1970 Chevy Chevelle body, with a Kyosho designed supercharger, and features light buckets that can be equipped with front and rear LEDs. Kyosho’s original dark blue color with a matte racing stripe of this machine and this ‘1970 Chevy Chevelle’ is packaged as a pre-built Readyset, so its easy even for beginners to enjoy without delay. Just use your own battery, battery charger and transmitter to experience the first brushless motor-powered model in the VE series!

Features:

●Equipped with the familiar supercharger and original side exhaust, enhancing the overall scale appearance.
●Front and rear light buckets that can accommodate LED lights (97054 - sold separately) are offered in a chrome finish to enhance the realism.
● Equipped with high-power TORX 10E brushless motor. In addition, sintered 32T pinion gear is equipped as standard to reliably transmit the full force from the motor.
● Waterproof BRAINZ 10 V2 60A ESC with cooling fan provides stable power without heat loss
● Equipped with vintage touring car (VTC) tires with compound optimised for brushless performance, and new color Rostyle-type wheel design to match the classic style of the Chevrolet Chevelle.
● Aluminum center shaft prevents twist and delivers high-RPM drive. Shaft-driven full-time 4WD touring chassis provides easy handling and is a joy to drive for anyone.
● Includes 6kg/cm plastic gear KS4031-06W steering servo as standard.
● Full ball bearing driveline reduces power loss through friction.
● Sealed differential and transmission realize excellent reliability, even in dusty parking lots.
● Equipped with a plated dummy brake disc and painted brake caliper for an elevated sense of scale.
● Uses hex drive button head screws throughout. Allows secure tightening torque to be applied and maintenance with fewer tools.
● Motor mount has mounting holes according to the size of the pinion gear, eliminating the need for tricky backlash adjustment. Supports pinions from 29T to 37T.
● Wide range of optional parts are available to further boost driving performance.

Aluminium Center Shaft

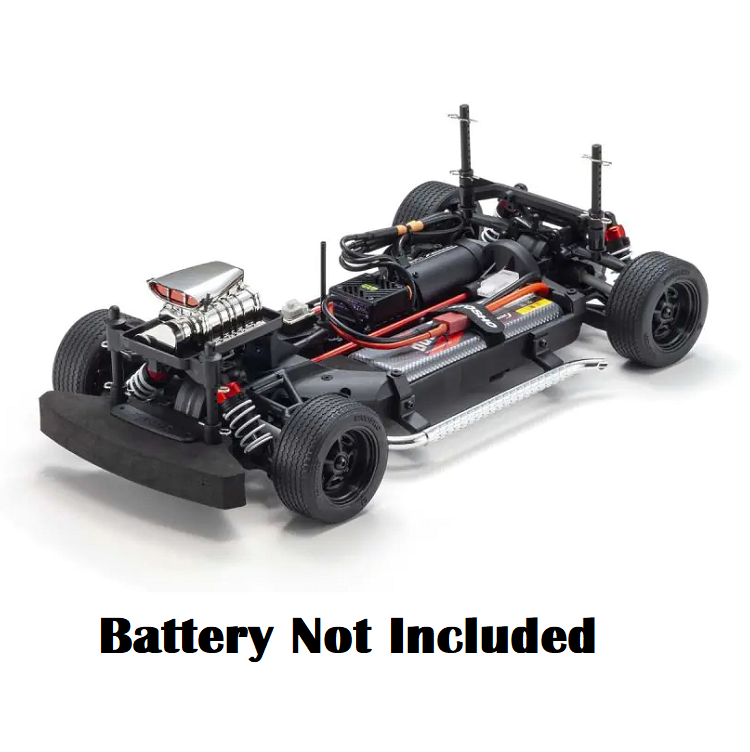

HD center shaft is equipped as standard to prevent twisting and support high-speed performance. The simple and functional main chassis uses lightweight impact-resistant nylon to reduce weight and an integrated gearbox that optimizes torsional rigidity to deliver a low center of gravity. The simple upper-deckless design realizes strength through each component and section.

Steering Servo

Equipped with the advanced functionality of the KS4031-06W steering servo. The front suspension optimizes bump steer and scrub radius for improved handling and features interchangeable front left and front right ball-connected steering knuckles that deliver smooth operation and high crash resistance.

Motor & ESC

High-powered TORX 10E brushless motor. The sealed motor case prevents foreign objects from entering the motor and gearbox. Sintered 32T pinion gear is equipped as standard for reliable transfer of the high-powered force from the brushless motor. 68T and 32T are standard settings for spur gears and pinion gears respectively, however a total of 9 pinion gear variations from 29T to 37T are available to suit various motors for a wide range of gear ratio settings. In addition, set positioning of the motor according to the number of teeth of the pinion gear reduces problems with backlash adjustment.

BRAINZ 10 V2 speed controller with cooling fan for brushless motors. Program settings can be changed to suit different conditions and it’s also waterproof so you can even run through the rain or small puddles.

Shocks

Equipped with oil shocks as standard. Vehicle height can be adjusted by changing the included ball ends and spring spacers according to the vehicle type and setting.

Wheels & Tyres

Features VTA tires with compound optimized for brushless motor performance in combination with Rostyle type wheels

Specs:

- Length - 490mm
- Width (Body width * excluding mirror) - 208mm
- Height - 138mm
- Chassis Height - 15mm(approx.)
- Wheelbase - 274mm
- Tread (F/R) - 167mm
- Tires (F/R)  - φ64×27.7mm
- Gear Ratio - 6.54：1
- Weight - 1.68kg (approx.)
- Radio system - Syncro KT-231P+
- Motor - TORX10E

Whats in The Box:

●Completed chassis with R/C radio installed
●Factory assembled body complete with color scheme
●Syncro KT-231P+ transmitter
●Hexagonal wrench
●Spanner
●190mm offset wheel hex brake discs

Needed to Run:

• 7.2V Nimh or 7.4V Lipo battery
• Suitable battery charger
• 4x AA alkaline batteries for the radio
