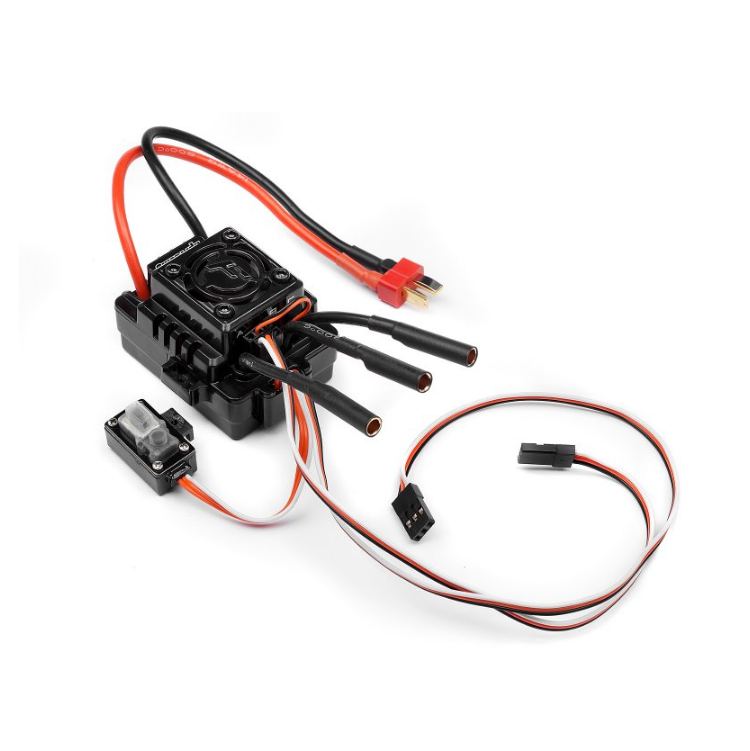

HPI Flux EMH-3S Brushless ESC 2-3S - HPI-112851

HPI Flux EMH-3S Brushless ESC 2-3S - HPI-112851

The all-new Flux EMH-3S electronic speed controller is just as adjustable as the Flux Reload V2 it replaces, but it's more powerful and more efficient to handle bigger motors and higher capacity battery packs for increased speeds and fun.

The Flux EMH-3S is being fitted in the latest Flux-powered HPI kits because it's ultra-versatile, super-powerful and ready for anything. Snow? Mud? Rain? Bogs? It can take it all! It's completely sealed so it's perfectly dustproof and waterproof, making it the ideal solution for powering any kind of on- or off-road 1/10th scale car, buggy or truck.

The Flux EMH-3S is extremely adjustable, which makes it great for all kinds of 1/10th scale vehicles.

• 3 Running Modes:
  • Racing (Forward and Brake only)
  • Bashing (Forward, Brake and Reverse)
  • Rock Crawler (instant switch from Forward to Reverse)
• 8 steps of Drag Brake adjustment from 0-100%
• 6 Auto-LiPo Cut Off settings: none or 2.5V-3.4V per cell
• 9 Punch Start Mode settings from soft to aggressive
• 4 steps of Maximum Brake Force adjustment from 25-100%
• 4 steps of Maximum Reverse Force adjustment from 25-100%
• 3 steps of Initial Brake Force adjustment from 0-40%, plus option to make IBF equal Drag Brake setting
• 3 steps of Neutral Range adjustment from 6-12%
• 8 steps of Motor Timing adjustment from 0-26.25 degrees
• Overheat Protection on/off selection
• Multiple protection features:
  • Auto-LiPo detection
  • Low voltage cut off protection for LiPo or NiMH/NiCd battery
  • Overheat protection for the ESC
  • Throttle signal loss protection
• Easily programmed with only one setup button, and is compatible with the pocket sized 2 in 1 professional program card.

Specs:

• Motor Type: Sensorless Brushless
• Application: 1/10th scale On-Road/Off-Road
• Battery Limit: 4-9 Cells NiMH or 2-3S LiPo
• Motor Limit 2S Lipo / 6-cell Nimh: On-Road 5.5T, Off-Road 6000 kV
• Motor Limit 3S LiPo / 9-Cell NiMH: On-Road 8.5T, Off-Road 4000 kV
• Constant Current: 80A
• Burst Current: 540A
• Resistance: 0.0004 ohm
• BEC: 6V/2A
• Dimensions: 50.5 x 56.2 x 35.4m
• Waterproof!

Plug can be changed instore to match your vehicle.
