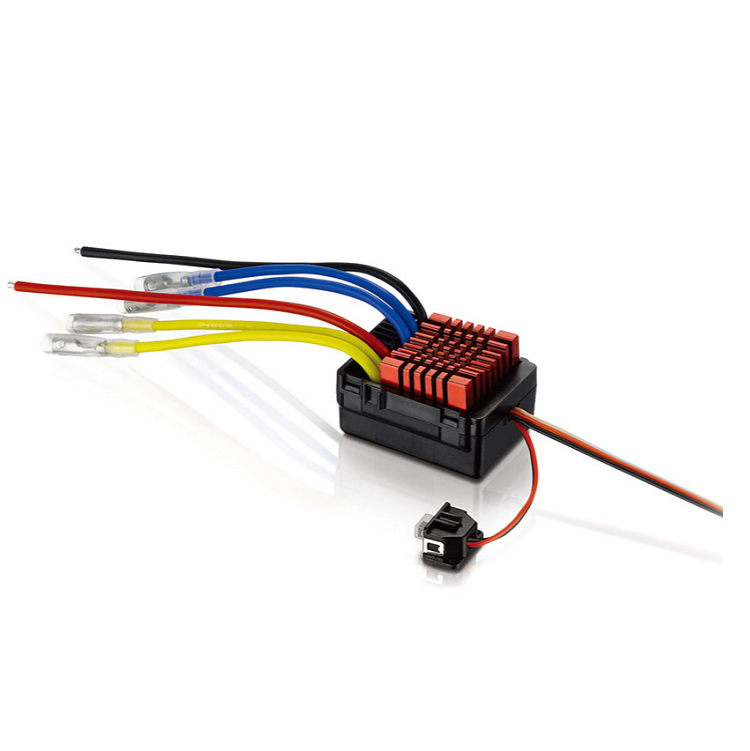

HOBBYWING Quicrun WP-880 80A Crawler Brushed Twin Motor ESC - HW30120301

HOBBYWING Quicrun WP-880 80A Crawler Brushed Twin Motor ESC - HW30120301

If you're looking to build a twin brushed motor rock crawler this ESC is for you.

Features:

• Fully waterproof design for all conditions. (Note: Please clean and dry it after use for avoiding rusty connectors).
• HOBBYWING patented copper heat-conductive plates attached to the MOSFET board allows the internal heat to be quickly transferred to the aluminum heat sink for great heat dissipation.
• Built-in switch-mode BEC with cont. current of 4A.
• Tunable drag brake and drag brake rate for different vehicles, tracks, and control feel.
• Adjustable PWM frequency combined with advanced freewheeling (/DEO) technology guarantees great throttle linearity and driving feel.
• 9 levels of acceleration/ punch from soft to aggressive for different vehicles, tires and tracks.
• Proportional brake with 9 levels of initial brake force, maximum brake force, and drag brake force.
• Multiple protections: low-voltage cutoff protection, thermal protection, and throttle signal loss protection.
• Separate programming port to easily connect the LED program card to the ESC.
• ESC programming via HOBBYWING LED Program Card.

Specs:

• Cont./Peak Current: 80A/400A
• Motor Type Supported: Brushed Motor (540, 550, 775 Size Motor)
• Applicable Car: 1/10th Vehicles & MOA style comp crawlers
• Motor Limit:
• Brushed Motor Limit with 2S LiPo /6S NiMH: ≥ 12T or RPM<30000@7.4V (540, 550 Size Motors)
• Brushed Motor Limit with 3S LiPo /9S NiMH: ≥ 18T or RPM<20000@7.4V (540, 550 Size Motors)
• Brushed Motor Limit with 4S LiPo /12S NiMH: ≥ 24T or RPM<15000@7.4V (540, 550 Size Motors)
• LiPo / NiMH Cells: 2-4S LiPo or 5-12S NiMH
• BEC Output: 6A@4A (Switch-Mode)
• Connectors: Input End: No Connectors; Output End: 4.0mm Female Bullet Connectors
• Size/ Weight: 45.9x34.7x26.5mm/ 75g
• Programming Port: Separate Port
• Waterproof: Yes

NOTE: the two sets of output wires are connected in parallel and can only be used to drive motors synchronously, the driving directions should be the same when connecting to two motors.
