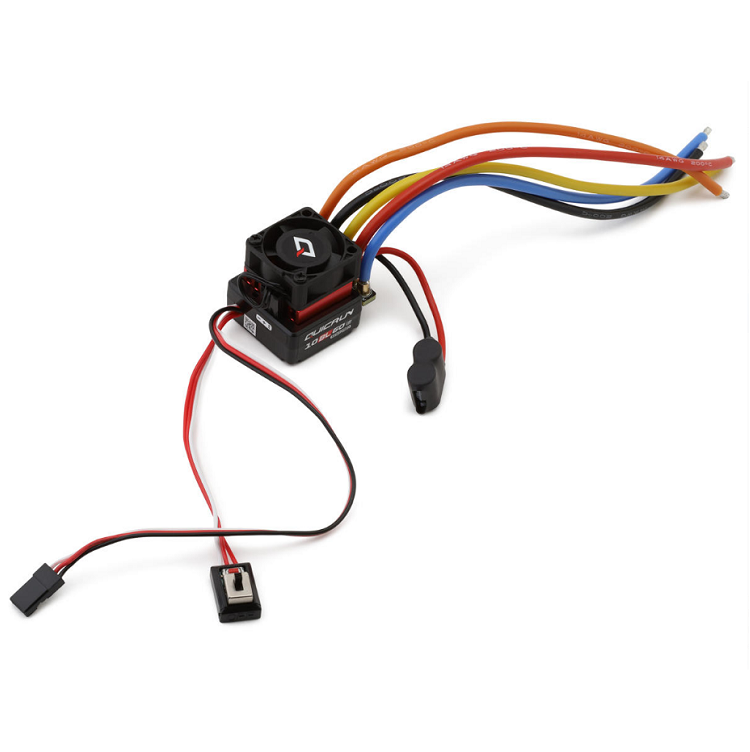

HOBBYWING Quicrun 10BL60 G2 Sensored Brushless ESC 2S 60A - HW30108001

HOBBYWING Quicrun 10BL60 G2 Sensored Brushless ESC 2S 60A - HW30108001

The Hobbywing Quicrun 10BL60 G2 Sensored Brushless Electronic Speed Controller (ESC) is an ideal choice for entry-level and intermediate builders, offering exceptional quality and ease of use. Its straightforward setup allows users to get started immediately, bypassing complex tuning processes. Equipped with a built-in BEC and boost or turbo timing adjustments of up to twenty-four degrees, this ESC enhances motor power for bursts of speed when needed. The support for motor rotation adjustment and a combination of robust hardware with advanced software ensures excellent current resistance and comprehensive protection, enhancing both durability and reliability. Additionally, you can program the ESC by using the SET button, or simplify the programming process by using the optional Hobbywing Multifunction LCD Bluetooth Program Box PRO G3 or Hobbywing LED Program Card (HW30502002 or HW30501003 - sold separately).

Preferred Motors:

Quicrun 6.5T 3650 Sensored Brushless Motor - HW30404312

Quicrun 8.5T 3650 Sensored Brushless Motor - HW30404311

Quicrun 10.5T 3650 Sensored Brushless Motor - HW30404309

Quicrun 13.5T 3650 Sensored Brushless Motor - HW30404310

Quicrun 17.5T 3650 Sensored Brushless Motor - HW30404306

Quicrun 21.5T 3650 Sensored Brushless Motor - HW30404307

Quicrun 25.5T 3650 Sensored Brushless Motor - HW30404308

Features:

• Built-in BEC for added functionality
• Provides support for motor rotation adjustment
• Combines robust hardware with advanced software
• Ensures strong current resistance and comprehensive protection
• Three programming options for flexibility
• Compatible with the Multifunction LCD and LED Programming Boxes

Specs:

• Suggested Application: 1/10, 1/12, 1/14 Buggies, Drift, & Touring Cars
• Motor Type: Brushless - Sensored/Sensorless
• Input Voltage: 2S LiPo (7.4V)
• Continuous Current: 60A
• Peak Current: 200A
• Dimensions (LxWxH): 35x31x30.8mm
• Weight: 66.5g
• Motor Limits: >8.5T 3650 (540-Sized)
• BEC Voltage: 6V/7.4V
• BEC Continuous Current: 4A
• BEC Peak Current: -
• Motor Connector: Solder
• Battery Connector: Solder
• Motor Wire: - 14awg
• Battery Wire: -14awg
• Programmable: SET Button (Optional LED or LCD Program Box available separately)

Includes:

• (1) Hobbywing Quicrun 10BL60 G2 Sensored Brushless ESC with 25x25mm fan
• (1) Double-Sided Mounting Tape Strip
• Product Manual

Please Note: We can solder your plugs of choice on this product.
