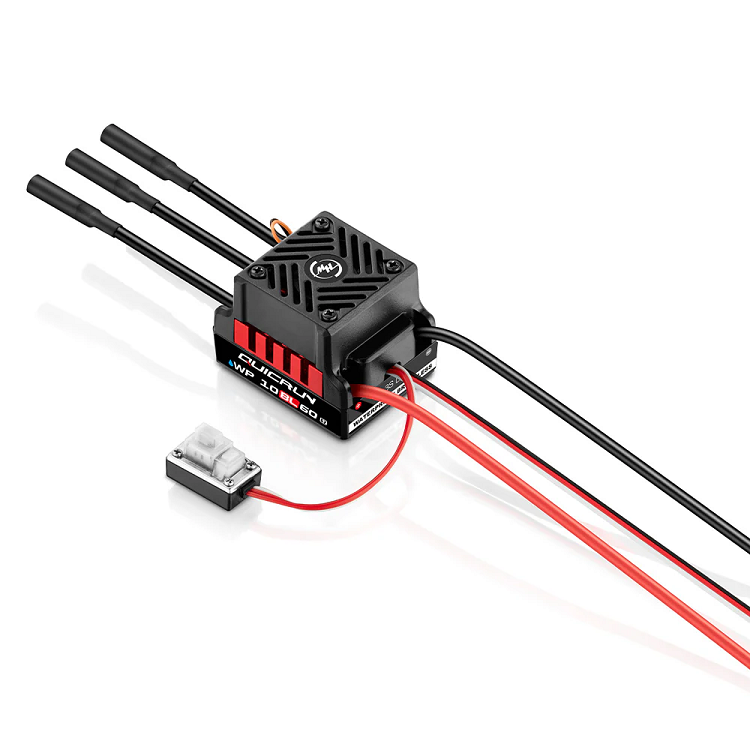

HOBBYWING Quicrun 10BL60 G2 60A Sensorless Brushless ESC 2-3S - HW30107300

HOBBYWING Quicrun 10BL60 G2 60A Sensorless Brushless ESC 2-3S - HW30107300

The Hobbywing Quicrun WP-10BL60 G2 Waterproof Sensorless Brushless ESC is a high-performance electronic speed controller designed for 1/10 on-road and off-road applications. It features intelligent freewheeling technology that enhances driving efficiency at lower operating temperatures, ensuring greater stability and reliability. This ESC is compact and easy to install, making it an excellent choice for entry-level users looking for a reliable and efficient solution for their RC vehicles.

The Quicrun WP-10BL60 G2 also boasts an efficient cooling system with a mesh design heat sink and copper thermal bars on each phase, ensuring optimal cooling. Its all-weather operation capability, with IP67 protection, allows it to perform excellently in various environments, including rain, dust, and sand. Additionally, versatile programming methods provide users with multiple ways to adjust parameters according to their preferences.

Features:

• Intelligent freewheeling technology for higher driving efficiency and stability
• Compact and lightweight design for easy installation
• Efficient cooling system with mesh design heat sink and copper thermal bars
• All-weather operation capability with IP67 protection
• Versatile programming methods for easy parameter adjustments
• Capacitor overheating protection to prevent damage

Preferred Motors:

3250kv 3652sl sensorless motor (2-3S) - HW30404400

4000kv 3652sl sensorless motor (2-3S) - HW30404401

5400kv 3652sl sensorless motor (2S MAX) - HW30404402

Specs:

• Type: Sensorless Brushless
• Applications: Most 1/10 on-road and off-road platforms
• Input Voltage: 2-3S Lipo
• BEC Output: 6V/3A
• Cont./Peak Current: 60A/360A
• Motor Limit:
  • 2S Lipo: Less than 6000kV
  • 3S Lipo: Less than 3500kV
• Dimensions: 1.81x1.44x1.35in (46x36.5x34.3mm)
• Weight: 82.6g
• Programming Port: Shared with fan port

Includes:

• Brushless ESC
• Instruction Manual

ESC MANUAL
