HOBBYWING EzRun MAX8 G2S WP Brushless ESC w/ Bluetooth - HW30103205

HOBBYWING EzRun MAX8 G2S WP Brushless ESC w/ Bluetooth - HW30103205

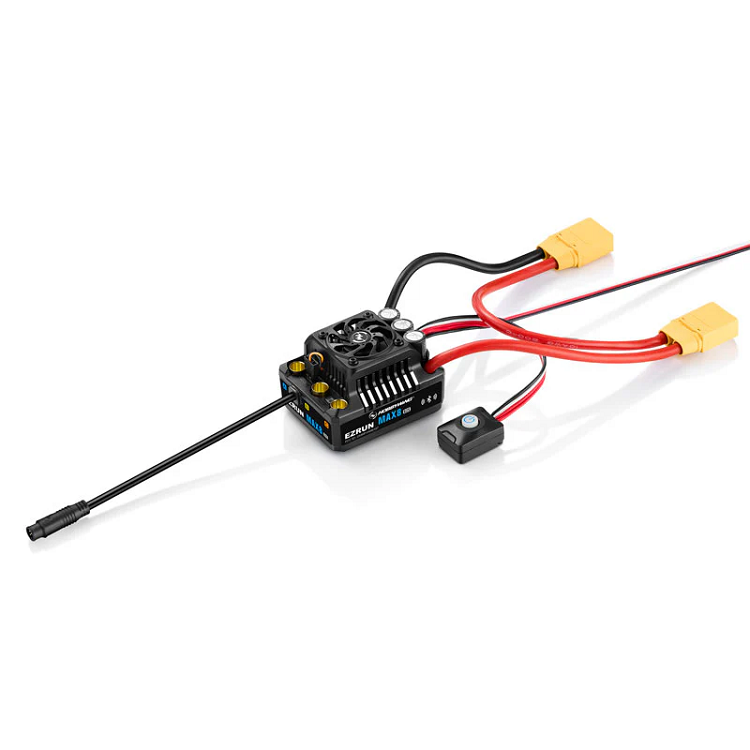

EZRun Max8 G2s Brushless ESC. The ESC features three built-in 680uF capacitors, enhancing performance by 74% (870uF) compared to the MAX8 ESC. These large capacitors eliminate the need for external capacitors on your vehicle. It also includes a patented frameless fan design, which rapidly transfers internal heat to the integrated housing radiator. High airflow from the fan's side and a copper thermal conduction sink on the internal power plate ensure efficient cooling. This design maintains the ESC's reliability and optimal thermal condition.

Features:

• Enhanced waterproof and dust-proof design for various climates.
• Built-in 6A/15A switch mode BEC, supports 6V/7.4V/8.4V servos.
• Advanced electronic switches prevent dust, humidity, and impact issues.
• 32-degree turbo timing increases RPM by 25% with compatible motors.
• Real-time data logging and firmware updates via HW LINK app and Bluetooth.

Specs:

• Scale: 1:8 Scale
• Type: Brushless Sensored
• Input Voltage: 4S-6S Lipo
• BEC Voltage: 6-8.4V
• Motor Limit:
  • 4S <3000kV
  • 6S <2400kV
• Programmable: Yes
• Dimensions: 60x48x40.5mm
• Weight: 194g

Preferred Motors:

EzRun 2500kv 4268SD - HW30402140

EzRun 2250kv 4278 SD - HW30402141
