HOBBYWING 3250kv Brushless Motor and 50A WP ESC Combo - HWAP50BL3250
HOBBYWING 3250kv Brushless Motor and 50A WP ESC Combo - HWAP50BL3250
Product Code: HWAP50BL3250
Availability:In stock
$179.95
179.95
Ask Away, What Can We Help You With??
‘In stock’ items reflect online stock levels only and may differ in store. Please contact us to confirm item availability in store.

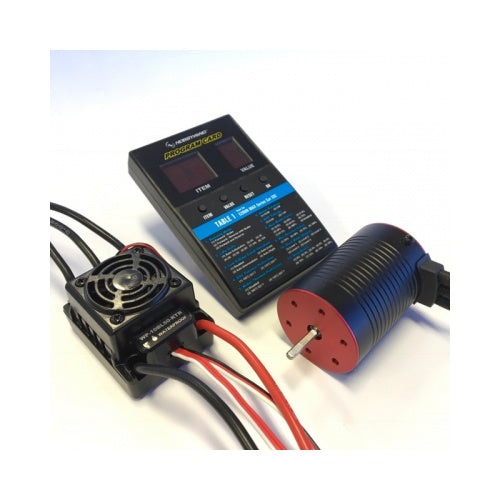

The perfect 1/10th combo to upgrade your car to brushless power!
50 amp waterproof electronic speed control fitted with Deans style T plug to battery and bullet plugs to motor. The motor is a 3250KV 36x52mm 540 size brushless (sensorless) motor with bullets fitted. Combo also includes program card. Combo is designed for 2-3s Lipo or 6-8 cell NiMh/Nicad.
ECS SPECS:
Model / SKU
|
QUICRUN-WP-10BL60 / 30107100
|
Cont./Peak Current/ Resistance
|
60A/360A/0.001Ω |
Motor Type Supported | Sensorless Brushless Motor |
Car Applicable | 1:10 On-road/Off-road/Buggy/Monster |
Motor Limit |
For 2S Lipo or 6 cells NiMH: 1. On-road: 3656-size or smaller motor with the KV<6000 2. Off-road/Buggy/Monster: 3656-size or smaller motor with the KV<4000 For 3S Lipo or 9 cells NiMH: 1. On-road: 3656-size or smaller motor with the KV<4000 2. Off-road/Buggy/Monster: 3656-size or smaller motor with the KV<3000 |
Battery |
4-9 Cells NiMH
2-3S Lipo |
BEC Output | 6V/2A (Linear Mode) |
Size/ Weight | 48.5(L)*38(W)*32(H) / 90g |
External Program Port | Available |
Working voltage of Fan | From battery directly without regulating |
ESC FEATURES:
-
External programming port, easy to connect to the LED Program Card when setting the ESC
- Proportional brake with 4 steps of maximum brake force adjustment and 8 steps of drag brake force adjustment.
- 9 steps of acceleration (/punch) adjustment from “soft” to “Very aggressive” to fit for different kinds of models, tires and tracks.
- Multiple protections: Low voltage cut-off protection / Over-heat protection / Throttle signal loss protection / Motor lock-up protection.
- One-button (the “SET” button on the ESC) to set the ESC, and easy to reset all parameters to the factory default settings.
- Compatible with the optional device ---- the portable Digital LED Program Card, especially convenient for outdoor use.
