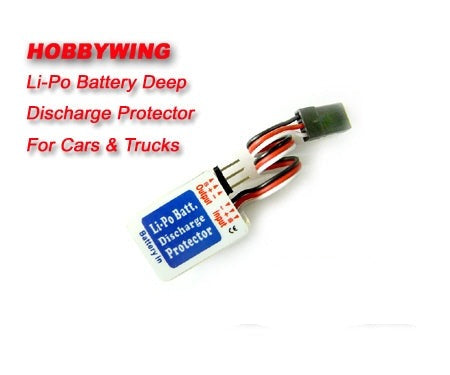

HOBBYWING 2S Lipo Battery Protector Multifunctional - HW86060080

HOBBYWING 2S Lipo Battery Protector Multifunctional - HW86060080

Overview

This unit features voltage indication, deep discharge protection and throttle signal abnormity protection. It can protect your precious LiPo battery from damage due to over-discharge through cutting off the ESC output to stop the motor. It monitors not only the total voltage of whole battery pack but also the voltage of each cell to prevent the weaker cell from being “damaged” earlier than the other cell.

Part Number

86060080

Specifications

Size: 32x18x9mm(LxWxH)
Weight: 5g;
Application: 2S LiPo
Cutoff Voltage (per Cell): 2.6V/2.85V/3.1V (*5.2V/5.7V/6.2V for 2S LiPo)
Precision: 0.05V
