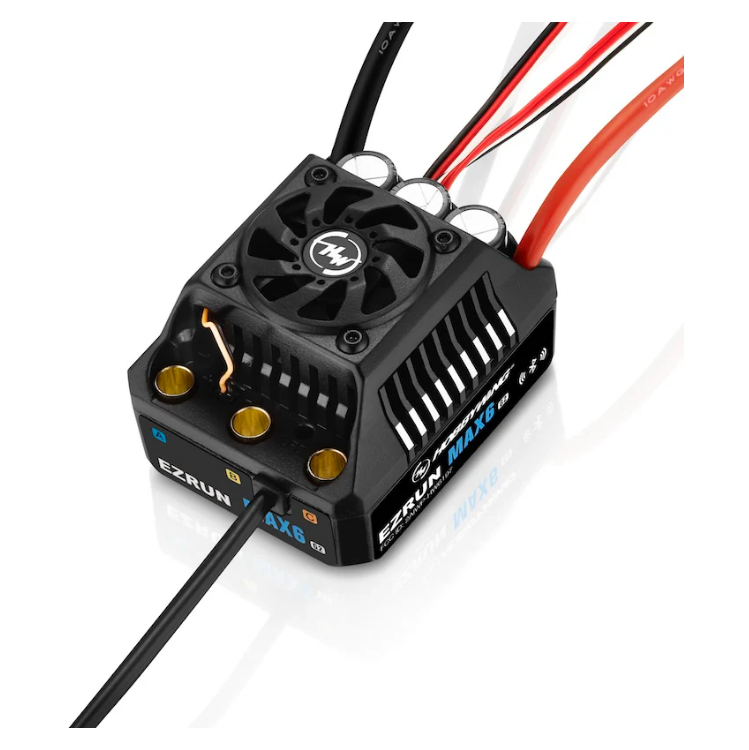

HOBBYWING 1:6 MAX6 G2 200A 3-8S WP ESC - HW30105100

HOBBYWING 1:6 MAX6 G2 200A 3-8S WP ESC - HW30105100

Hobbywing ESC suitable for 1:6th and 1:7 scale trucks.

What is the box?

(1) Ezrun MAX6 G2 ESC
(1) Extra set of 10 AWG 200C RED power wire
(1) Double side tape
(2) Heat shrink tube
User's manual
A HOBBYWING decal

Features:

• Innovative waterproof sensor interface, enhancing the overall waterproof and dustproof performance. Superior performance in harsh conditions like dust, ice and snow, water accumulation.
• Built-in ultra-powerful switch mode BEC with a continuous current of 8A, an instant 25A, and support for 6V/7.4V/8.4V switching, supporting a wide range of powerful and high-voltage servos.
• Supports turbo timing setting, the timing response is exceptional when used with the matching motor (such as EZRUN 4990 G2 or 5690 G2 Sensored brushless motor).
• Multiple protection functions: battery low voltage protection, ESC and motor overheat protection, signal loss protection, current protection.
• The built-in (integrated in the switch) Bluetooth function allows for setting and upgrading the esc by directly connecting to the mobile app, without any additional devices, making it simpler and more convenient.
• Data logging function to view various running data on the HW LINK app.
• Supports the firmware upgrade of the ESC, you can enjoy the latest functions.

Specs:

• Continuous/ Peak Current - 200A-1200A
• Motor  - Sensored/ Sensorless brushless
• Usage - 1:6 and 1:7 scale truck
• Motor Limit - 6S (22.2V) Lipo ≤ 2400kv, 8S (29.6V) Lipo ≤ 1700kv (4990/ 5690 size)
• Battery - 3 to 8S Lipo (11.1V to 29.6V)
• BEC Output - 6V - 7.4V - 8.4V adjustable (cont. current 8A)
• Cooling Fan - Stable 6V/ 7.4V/ 8.4V from the BEC
• Dimensions - 70L x 56W x 45.5Hmm
• Weight - 245g
• Programming - IOS or Android

Works with:

HW30402450 - 4990 size 1650kv sensored motor

HW30402350 - 5690 size 1250kv sensored motor
