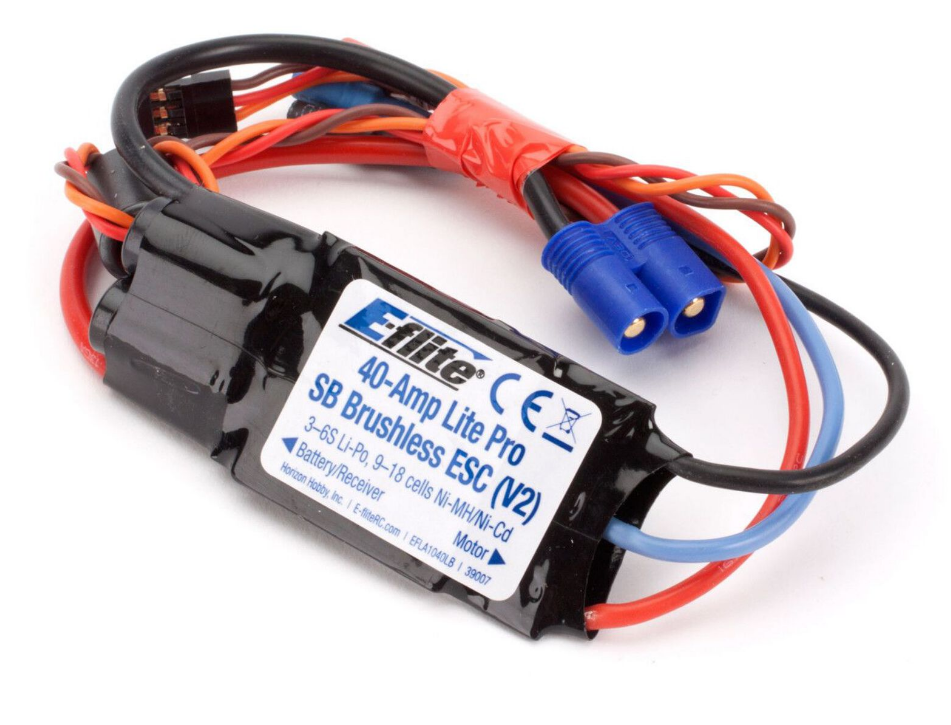

E-FLITE 40A Lite Pro Brushless ESC V2 - EFLA1040LB
The E-flite® 40-Amp Lite Pro Switch-Mode BEC Brushless ESC (V2). This is a high-quality sensorless brushless electronic speed control with an integrated switch-mode BEC that is very lightweight and efficient. It can operate without the need for a separate receiver battery to power your servos and receivers, saving you weight and complication.
Key Features
Up to 40 amps continuous current with proper air flow and 55 amps burst current (15 seconds)
Stronger BEC for support of most 3-axis stabilization systems
Drive up to 7 analog or 6 digital standard-sized servos with the BEC on any recommended input voltage
3- to 6-cell Li-Po, 9- to 18-cell Ni-MH/Ni-Cd input voltage
Programmable motor braking
Safe power-arm mode prevents accidental starts
Programmable low voltage cutoff with settings for 3-cell Li-Po (9.2V), 4-cell Li-Po (12V), 5-cell Li-Po (15V), 6-cell Li-Po (18V) or 74% of battery starting voltage
Programmable throttle input range (1.1ms–1.9ms or 1.2ms–1.8ms)
Programmable soft start for helis and airplanes
Auto motor shut down if signal is lost or there is interference
Programmable timing—5 user-selectable ranges, use with a large variety of brushless motors
Specs
BEC Voltage
2.5A continuous
Input Voltage
10.8?22.2V
Part Type
Electronics
Output Connector
3.5mm Bullet
Programmable
Yes
Brakes
Yes
Connector Type
EC3
Amperage
40-60
