DUBRO 1.2 -1.5 4-Stroke Engine Mount Set - DBR688

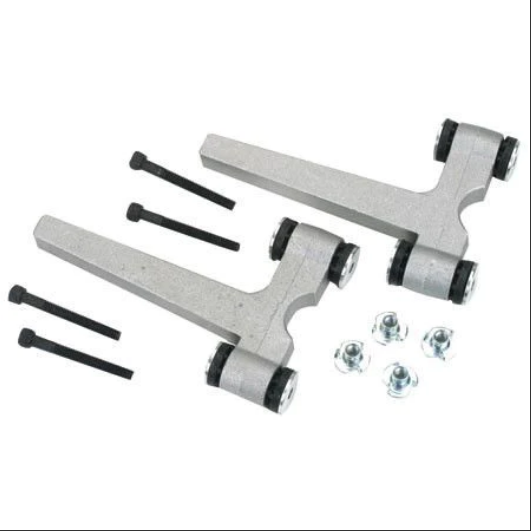

DU-BRO s innovative Motor Mounts are very effective in reducing airframe vibration and greatly reduce fatigue on the entire aircraft. They are a totally captive mount that cannot de-bond and break free. Each motor mount comes complete with hardware and elastomeric elements. (QTY/PKG: 1 Set ).

Replacement Elastomeric elements are available Please select the correct number for your Motor Mount. (QTY/PKG: 8)

Weights:

  • #682 - 155grams / assembly
  • #686 - 190grams/ assembly
  • #688 - 198grams/ assembly
  • #656 - 8grams / 8 piece set
  • #658 - 10grams / 8 piece set
  • #689 - 16grams / 8 piece set

Dimensions:

Cat# A B C
682 2.031" (51.59 mm) 2.700 (68.58 mm) 4.203" (106.76 mm)
686 2.500" (63.50 mm) 3.250" (82.55 mm) 4.180" (106.17 mm)
688 2.750" (69.85 mm) 3.531" (89.69 mm) 4.180" (106.17 mm)
