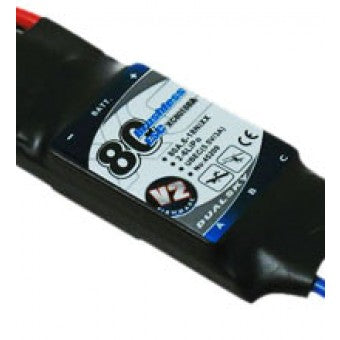

DUALSKY 80A Brushless ESC 2-6S - DSXC8018BA
DUALSKY 80A Brushless ESC 2-6S - DSXC8018BA
Product Code: DSXC8018BA
Availability:Out of stock
Ask Away, What Can We Help You With??
‘In stock’ items reflect online stock levels only and may differ in store. Please contact us to confirm item availability in store.
DUALSKY 80A Brushless ESC 2-6S - DSXC8018BA
If you need a high-quality ESC, Dualsky's XC8018BA is hard to beat and is ideal for your .50-class aerobatic RC models.
Features
- Comes with the latest software and hardware
- Compatible with motor types up to 210,000rpm (2 poles motors)
- Low resistance
- Quality MosFETs included for high current usage
- Compatible with Dualsky's Governor Mode (DGM)
- Modifiable cut-off for motor stop or power reduction
- Dualsky's Linear Brake Mode allows you to adjust the brake strength
- Cut-off setting available for instances of low voltage
- Overheating protection
- Automatic cut-off in the event of a signal loss
- Numerous start-up modes for fixed wing and helicopter setups
- Throttle control throughout the range is smooth and reliable
Specs
- Dimensions (L x W x D) - 75 x 30 x 14mm
- Weight (g) - 71
- Number of Cells (NiXX) - 6-18, 7.2-21.6V
- Number of Cells (LiPo) - 2-6, 7.4-22.2V
- Resistance (Ri) - 0.0016Ohm
- Max Continuous Current (A) - 80
- Max Continuous Output (W) - 1680
- Max Burst Current (A) - 100
- Max Burst Output (W) - 2040
- BEC/Dissipative Power - 5.5V/3A (Switching)
- Programmable - Throttle + ProgCARD V2
- Input Wires - 120mm, 14AWG, DC3
- Output Wires - 75mm, 16AWG, DB4
- Signal Wire - 300MM JR
