Dualsky

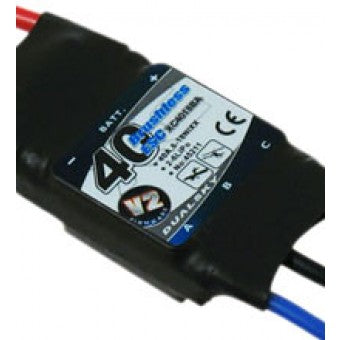

DUALSKY 40A Brushless 2-6S ESC -DSXC4018BA
DUALSKY 40A Brushless 2-6S ESC -DSXC4018BA
Regular price
$109.95
Regular price
Sale price
$109.95
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
DUALSKY 40A Brushless 2-6S ESC -DSXC4018BA
This 40A, 20V ESC from Dualsky offers many features for RC sport planes up to .32-class and 450 3D helicopters.
Features
- The new designed 2nd version software and hardware have many new features.
- Supports all motor types up to 210,000 rpm(2 Poles motors).
- Extremely low resistance, factory high quality MosFETs, for high current usage.
- Dualsky Governor Mode(DGM) ready.
- Adjustable cut-off, either motor stop or reduction in power.
- DLBM on/off - Dualsky Linear Brake Mode. Brake strength can be adjusted by transmitter when switch on.
- Full protection features including: Low voltage cut-off, Over heating protection, signal loss auto cut-off.
- Normal, Soft or Super-Soft start up modes available, for both fixed wing and helicopter setups.
- Smooth and accurate throttle control throughout the range.
- Throttle digital signal sampling, compatible with the signal frequency of 14 ms Normal mode and 7 ms high-speed mode (HS Mode).
- Throttle range can be re-calibrated, so suitable for all brands of transmitter.
- Fully PC programmable when used with Dualsky USB link(#45525).
- Compatible with programming card(#45200) for easy re-programming at the field!
- UBEC switching power supply, support up to 6S Lipo, 3A, easily support 4-5pcs of standard Digital Servos.
Specs
- Dimensions (L x W x D) - 52x 28x 14mm
- Weight (g) - 32
- Number of Cells (NiXX) - 6-18, 7.2-21.6V
- LiPo - 2-6, 7.4-22.2V
- Resistance(Ri) - 0.0031Ohm
- Max Cont. Current & Max Cont.Output - 40A, 840W
- Max Burst Current & Max Burst Output - 60A, 1224W
- BEC / Dissipative Power - 5V/3A (Swiching)
- Programmable - Throttle + ProgCARD V2
- Input Wires - 120mm, 14AWG, DC3
- Output Wires - 75mm, 16AWG, DB3
- Signal Wire - 300MM JR
