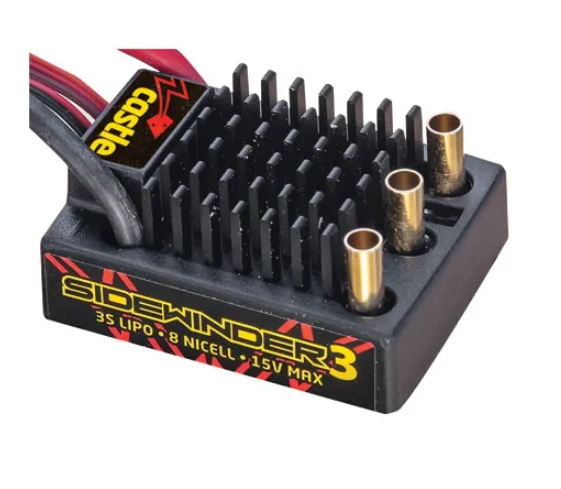

CASTLE CREATIONS Sidewinder 3 Sensorless 2-3S Brushless ESC - CSE010011500

Sidewinder 3  is the perfect water resistant sport brushless ESC for 1:10 scale off-road, on-road, and rock crawlers running up to 3S LiPo**.

(**Brushed motors are recommended for rock crawlers (vehicles traveling 3-5mph.) Brushless motors are fine for use with rock racing. If your vehicle is going to be in a bound up situation, very slowly traversing rocks and obstacles, you are running a rock crawler. If you are constantly traveling at 5mph or higher, you have a rock racer.)

Features:

• 2s - 3s LiPo or 6 - 8 cell NiMH use in vehicles up 2.3kg including battery, ready-to-run.
• Suitable for sensorless brushless motor (540 size or 36mmD) or brushed motor (down to a 19T)
• Water resistant design ESC
• 5.0 volts fixed, 2A Peak BEC
• Convenient transmitter programming for six common adjustable settings
• Additional settings and software updates available via Windows-based Castle Link software and USB adapter (sold separately), a  Field Link Card  (sold separately) or the Castle Link iOS App and a B-LINK Bluetooth Adapter (sold separately)

Package Includes:

• Sidewinder 3 ESC
• User Guide and Quick Start Guide
• Gearing Chart for Castle Motors
• Castle decals

Recommended Motors -

• 1406 4600Kv: Max Cells: 3S Lipo or 8 NiMH (2s only for 2WD short course trucks)
• 1406 5700Kv: Max Cells: 3S Lipo or 8 NiMH (2s only for 2WD short course trucks)
• 1406 6900Kv: Max Cells: 2S Lipo or 7 NiMH
• 1406 7700Kv: Max Cells: 2S Lipo or 7 NiMH

Recommended Vehicles:

Intended for 2WD short course trucks running on 2s LiPo (5700kv or lower) and weighing up to 2.3kg.

For 4WD short course trucks please use the Sidewinder SCT ,  Mamba Max Pro SCT or Mamba X ESC.
Great for sport setups on any 2WD Stadium Trucks, Buggies and On-Road Touring cars. Makes a great brushed ESC for rock crawling using a 35T - 55 turn motor.
