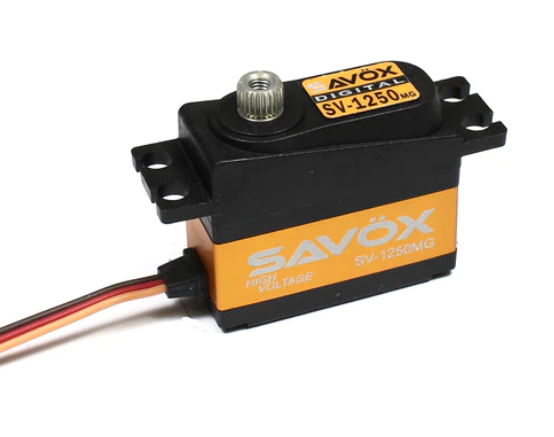

SAVOX 10kg@8.4V MG Low Profile Servo - SAV-SV1250MGP
Steel gear train provide durability against heavy use.
Capable of HV operation.
Aluminum middle case allows for cooler operating temperatures.
Ideal where torque is needed in a small mounting space.
"Plus" series servos feature Soft Start and Sanwa SSR compatibility.
Torque @7.4v - 8.0kg/111.1oz-in
Torque @8.4v - 10.0kg/138.9oz-in
Speed @7.4v - 0.095 sec/60 deg
Speed @8.4v - 0.085 sec/60 deg
Dimensions L x W x H (mm): 35.0 x 15.0 x 29.2
Weight: 29.6g
Operating Temperature: 14° - 122°F (-10° - 50°C)
Running Current (no load): 100mA @6.0V, 120mA @7.4V
Stall Current (at locked): 1600mA @6.0V, 2000mA @7.4V
Idle Current: 6mA @4.8V, 6mA @6.0V
Wire Length: 250 ± 5mm
Output Gear Spline: 25 Tooth
Bearings: 2BB
Operating Travel: 110° (1000 → 2000 µ second)
Neutral Position: 1500 µ second
Pulse Width Range: 800 → 2200 µ second
Maximum Travel: Appx 154° (800 → 2200 µ second)
Refresh Rate: 333 Hz
Motor Type: Coreless
SAVOX 10kg@8.4V MG Low Profile Servo - SAV-SV1250MGP
Product Code: SAV-SV1250MGP
Availability:In stock
$109.95
109.95
Ask Away, What Can We Help You With??
‘In stock’ items reflect online stock levels only and may differ in store. Please contact us to confirm item availability in store.
SAVOX 10kg@8.4V MG Low Profile Servo - SAV-SV1250MGP
The SV-1250MG Plus mini-sized, metal-geared, digital servo is extremely powerful for it's size and capbable of operating on higher voltages than most mini/micro servos compared to other brands.
"Plus" series servos feature Soft Start and Sanwa SSR compatibility.
Features:
Specifications:
