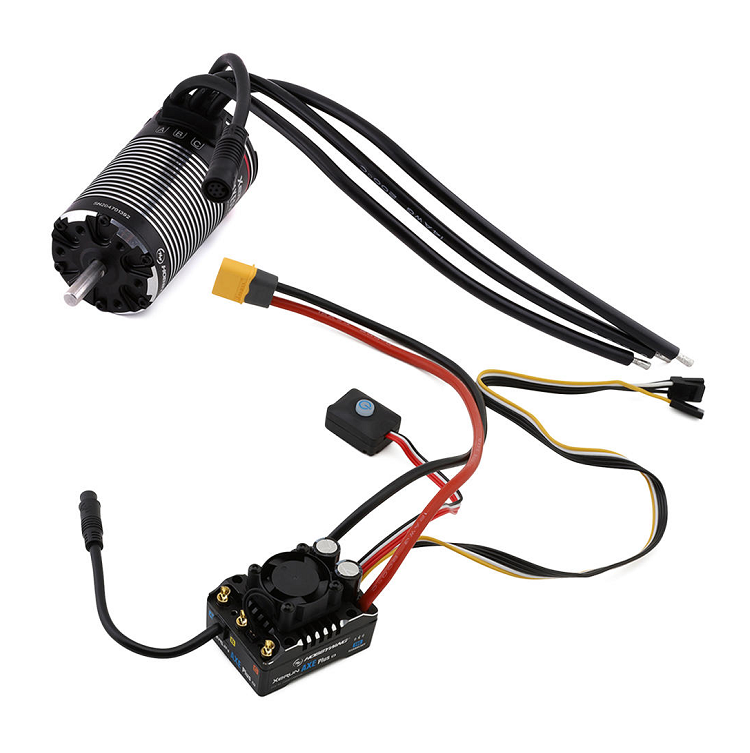

HOBBYWING XeRun 3300Kv AXE550 R2 Sensored Brushless Crawler Motor & AXE+ R3 135A ESC Combo - HW38020389

HOBBYWING XeRun 3300Kv AXE550 R2 Sensored Brushless Crawler Motor & AXE+ R3 135A ESC Combo - HW38020389

Discover the ultimate upgrade for your rock crawler with the Hobbywing XeRun AXE Plus R3 Combo, combining the groundbreaking AXE R3 Brushless ESC and the high-performance AXE R2 Brushless 3300kV Motor. Experience unmatched power, precision, and durability, designed to dominate the toughest trails and deliver an unparalleled crawling experience.

ESC

The Hobbywing XeRun AXE R3 Brushless ESC is an innovative powerhouse designed to elevate the performance of rock crawlers ranging from 1/10 scale to 1/6 scale. Featuring Hobbywing's patented Field Oriented Control (FOC) technology, the AXE R3 delivers exceptional low-speed torque, greatly enhancing the driving experience. The ESC is equipped with a chip-type magnetic encoder, ensuring precise signal output and consistency across all three phases, which guarantees accurate rotor position data. This precise control allows the ESC to manage up to 6S LiPo batteries, delivering a continuous current of up to 135A, making it suitable for 1/10, 1/8, 1/7, and 1/6 scale crawlers. Additionally, the dual external control channels enable real-time parameter adjustments through the receiver’s open channels, ensuring that users can optimize performance in varying conditions seamlessly.

The ESC boasts an IP67 protection rating, ensuring it is both waterproof and dustproof, capable of operating reliably in diverse climatic conditions without risk of damage. A smart cooling fan feature activates only when the ESC reaches a preset temperature, helping to conserve power, reduce noise, and maintain an optimal operating temperature. This smart thermal management is complemented by a robust aluminum case, which adds to the ESC’s durability and protects the internal components. The built-in Bluetooth module allows for easy programming and real-time data monitoring via the HW Link mobile app, providing users with the ability to fine-tune settings, upgrade firmware, and access the ESC's built-in data logging functions on the go. These features, combined with the powerful internal BEC that provides a maximum output current of 15A with switchable voltage settings, make the XeRun AXE R3 an exceptional choice for serious rock crawling enthusiasts seeking unmatched performance and reliability.

Motor

The Hobbywing XeRun AXE R2 Brushless 3300kV Motor is a game-changer for 1/10 rock crawlers, incorporating advanced design and cutting-edge features to deliver unparalleled performance. As the world's first Field-Oriented Control (FOC) brushless system for rock crawlers, it offers super linearity, high torque, and extreme silence, ensuring a smooth and powerful driving experience. The motor supports up to a 3S LiPo battery and utilizes a chip-type magnetic encoder that guarantees consistency between the three phases' signals, providing precise rotor position feedback. This encoder also includes "Polarity Protection" preventing damage from incorrect wiring. With an IP67 waterproof and dustproof design, the AXE R2 motor is built to withstand harsh weather and track conditions, ensuring reliability and longevity. The intelligent torque output and speed closed-loop control maintain consistent motor RPM under all loads, while the 4-pole, 12-magnet structure featuring Hobbywing's "staggered pole" patent eliminates cogging and torque ripple, enhancing low-speed maneuverability. Additionally, the new sensor harness with a plug-and-screw design and silicone O-ring ensures a firm, waterproof connection between the motor and ESC, solving the waterproof challenge for sensor ports and making the XeRun AXE R2 Brushless 3300kV Motor an outstanding choice for rock crawling enthusiasts seeking exceptional performance and durability.

Motor Specs:

• Scale: 1:10
• Type: Brushless
• Sensored/ Sensorless: Sensored
• Pole Count: 4
• Lipo Cells: 2-3S
• Size: 36mm Dia x 66.2mm Long
• Motor Shaft: 5mm
• Weight: 284g
• Internal bearings: 5x13x4mm

ESC Specs:

• Scale: 1/10th,1/8th,1/6th
• Brushed/Brushless: Brushless
• Sensored/Sensorless: Sensored
• Waterproof: Yes
• Cont./Peak Current: 135A/600A
• Input Voltage: 2-6S Lipo
• BEC BEC Output: Switch Mode 6V/7.4V/8.4V @6A
• Input Wires: Black/ Red-12AWG-265mm
• Output Wires: No
• Input Connectors: XT60
• Output Connectors: No
• Fan Size: 25x25x10mm
• Fan Voltage Range: 6-8.4V
• Fan Power: Via BEC
• ESC Programing via:
  • SET Button on ESC: Not Supported
  • LED Program Box: Not Supported
  • LCD G2 Program Box: Not Supported
  • LCD PRO: Not Supported
  • OTA Programmer: Not Supported
  • Program Port: Built-in bluetooth
• Data Recording:
  • Extreme value: Supported
  • Real-time Data: Supported
  • Historical data (Graph): Supported

• Firmware Upgrade: Supported
• Size: 49.5x37.9x32.8mm (Height with fan)
• Weight: 126.5g (Including the weight of input line)
